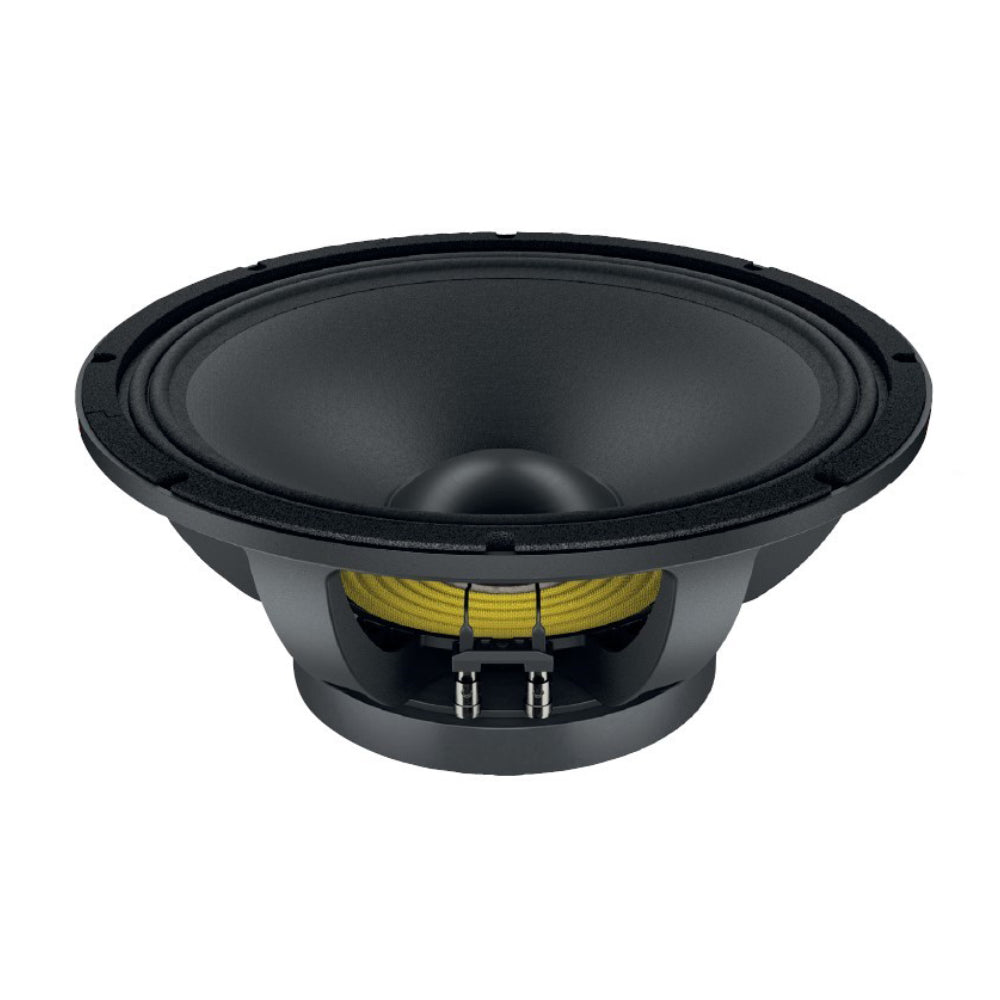

LaVoce WAF153.03-8 Woofer Professionale 8 Ohm Max 1200W 38cm 15''
Caratteristiche tecniche:
Nominal Diameter: 380 mm (15 in)
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.2 Ohm
Program Power: 1000 W
AES Power Rating: 500 W
Sensitivity: 100.5 dB

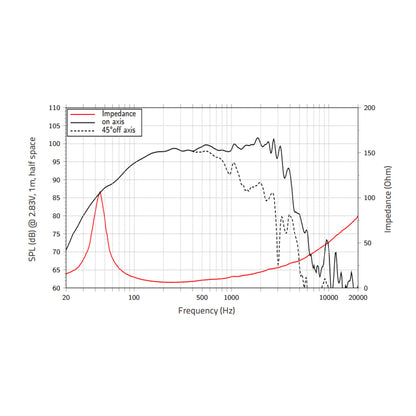

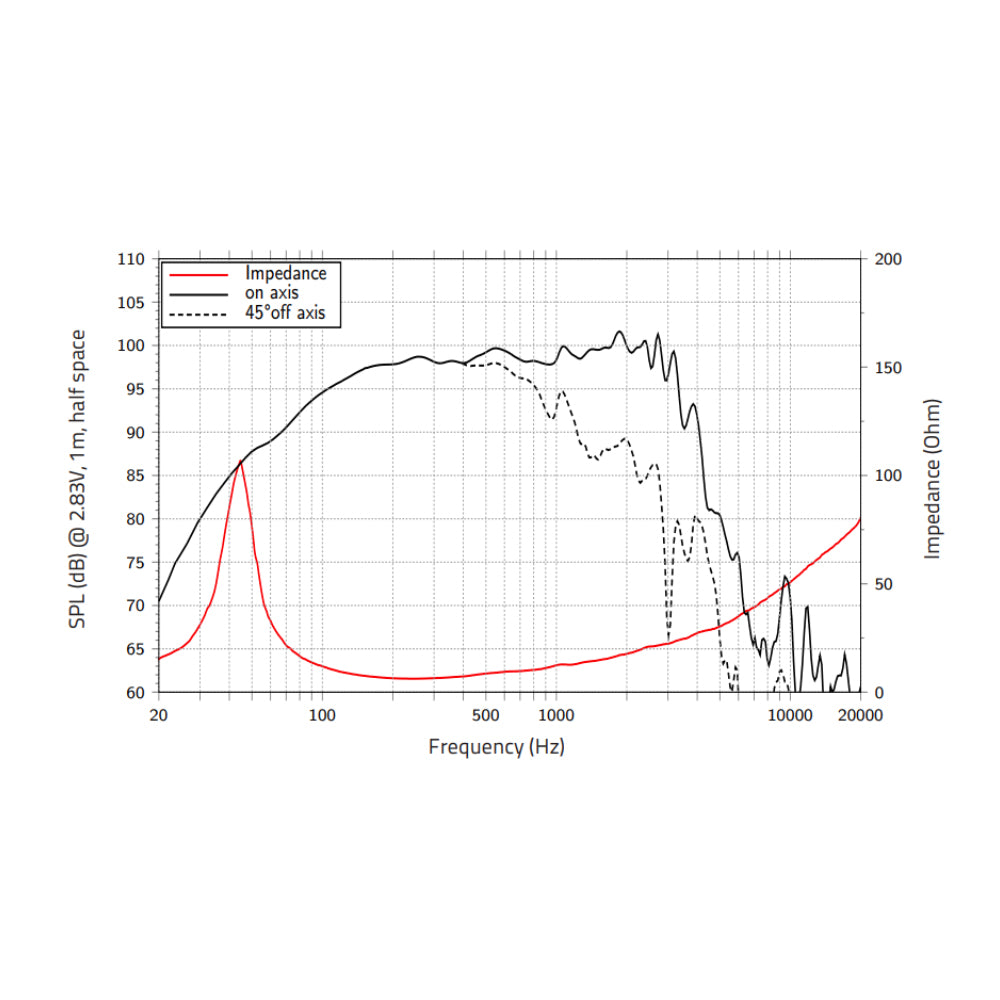

Frequency Range: 40 ÷ 3000 Hz
Voice Coil Diameter: 75 mm (3 in)
Chassis Material: ALUMINIUM
Magnet Material: FERRITE
Magnet Dimensions: OD x ID x h 210 x 90 x 25 mm (8.27 x 3.54 x 0.98 in)
Coil Material: COPPER
Former Material: GLASS FIBER
Cone Material: WATER RESISTANT TREATED PAPER + WATER PROOF BOTH SIDES TREATMENT
Surround Material: POLYCOTTON
Xmax: 6.7 mm (0.26 in)
Xmech: 13 mm (0.51 in)
Gap Height: 11 mm (0.43 in)
Voice Coil Winding Height: 19 mm (0.75 in)
Driver Displacement Volume: 5 l (0.177 ft³)
Recommended Enclosure: 70 l (2.472 ft³)
Recommended Tuning: 59 Hz
